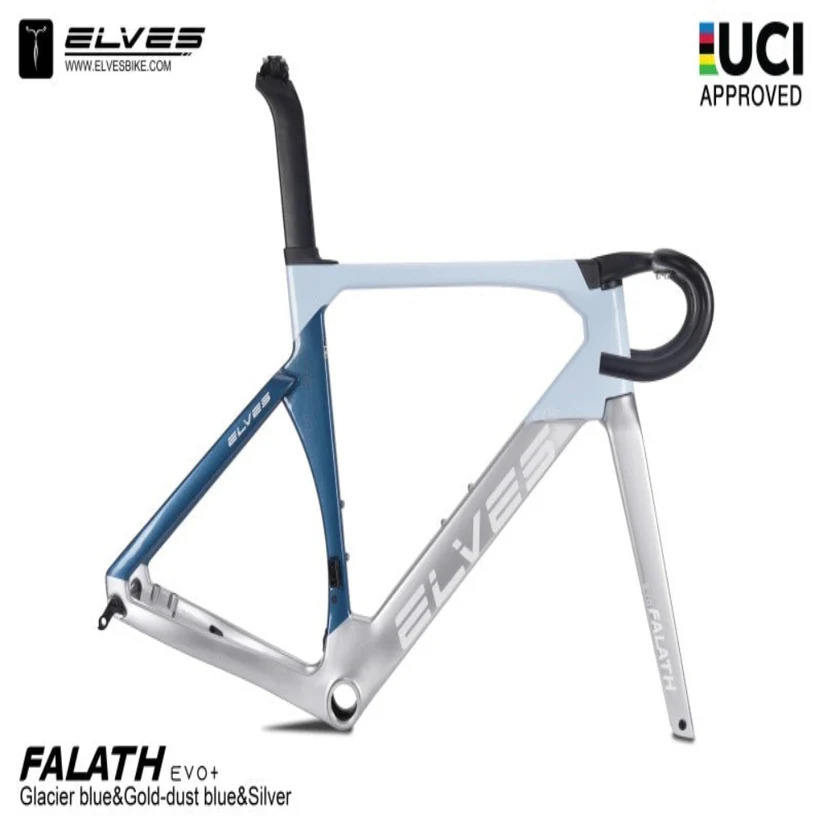

The Falath EVO, a revolutionary disruptor, is our UCI approved and ISO compliant aerodynamic race-ready road bike that has taken the industry by storm, gaining a winning reputation for both speed and ultimate rider comfort. Engineered with a Toray T800 and T1000 carbon fiber layup, the sharp aero lines have resulted in a super-stiff frame, creating aggressive power transfer and precision handling, making the Falath Evo the choice of amateur and professional race teams globally.
The Falath Evo can now be adapted to create the ultimate UCI approve Aero TT bike with the use of our new OROME Aero Ray pro/Sport bars and our OROME Aero Evo stem. A simple solution to creating a superb TT bike.
Elves frames are made in their own factory, with their own QA team and the frame has been UCI certified.
FRAME:
FULL-CARBON (TORAY T800 & T1000 CARBON FIBER)
GEOMETRY: PRO
SEAT CLAMP: INTEGRATED
WEIGHT: 1035G (SIZE 46, UNPAINTED)
HEADSET BEARING: 1-1/2"X7mm LOWER,1-1/2" X7mm UPPER
BRAKE: FLAT MOUNT
BOTTOM BRACKET: T47 Aluminum BB
- T47-24 for Shimano crank 24mm axle
- T47 for SRAM 28.99 axle
ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
EPS MOLDING TECHNOLOGY
FULL INTEGRATED CABLE ROUTING
THRU AXLE DIMENSION: M12X1.5X163 mm
MAX TYRE SIZE: 700CX32C
MAX ROTOR SIZE: UP TO 160MM
Fork
FULL-CARBON FORK
WEIGHT: 415g
OFFSET: 45mm
BRAKE: FLAT MOUNT
STEER TUBE LENGTH: 300mm
THRU AXLE DIMENSION: M12X1.5X121 mm
MAX ROTOR SIZE: UP TO 160MM
Seat Post
LENGTH: 350mm with 20mm Offset
WEIGHT: 250g
SINGLE BOLE PIVOT PRECISE ADJUSTMENTS
SEATPOST: FULL-CARBON
SADDLE CLAMP: 7X7mm SADDLE RAIL CLAMP (7X10mm CLAMP FOR CARBON RAIL INCLUDED)
Certification
UCI APPROVED
BOTH EN 14766 AND ISO 4210-6:2014
Accessories
T47 CERAMIC BEARINGS BB
ELVES HEADSET = INTEGRATED HANDLEBAR SPACERS
REAR DERAILLEUR HANGER X2
Available Colours:
Special Colours
Silver Crystal
Champaign Golden Crystal
Chameleon (Nebula) Crystal
Matt Black & Glossy Black
Custom Factory Paint
Standard Colors:
3D Magic & Blazing Orange & Silver
White & Red & Black
Chameleon (Black Red) & Lemon Yellow & Gun Gray
Chameleon (Nebula) & Black & Silver
Glacier blue & Gold-dust blue & Silver
Sakura Pink & White & Carmine Pink
Wasabi Green & Chameleon (Forest Green) & White
